Description
A switch to toggle between standard engraving and a rotary adapter on the following laser engravers.
These will not work with the Neje / Ortur / Aufero engravers.

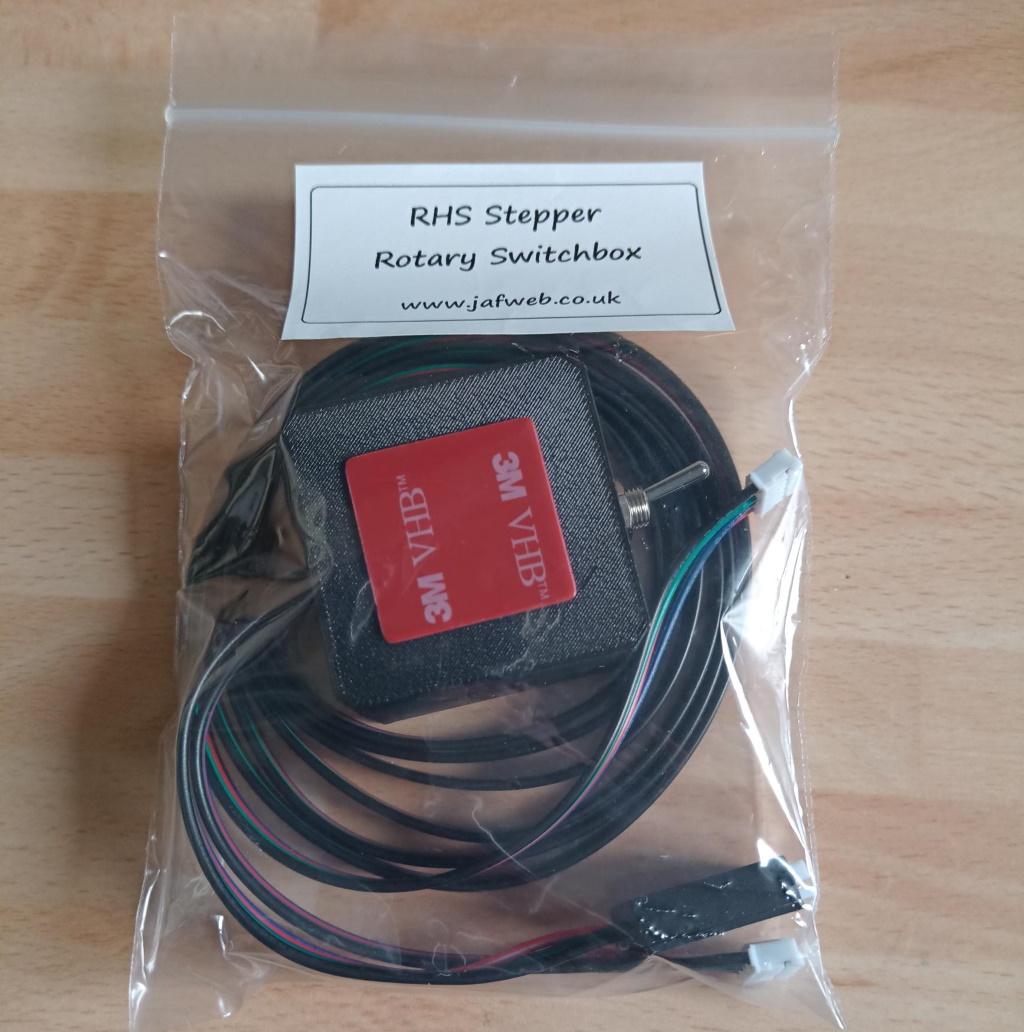

RHS Switch – Mounts on the ‘Y’ axis motor on the right hand side of the:
Sculpfun S6, S9 and S10 laser engravers
Yorahome 6550 laser engraver.
LHS Switch – Mounts on the ‘Y’ axis motor on the left hand side of the:
Atomstack A5, A10 and S10 laser engravers.
If you have another brand laser please get in touch. I can supply an adapter cable that will swap the necessary cables if I can’t find a wiring diagram on line for your engraver.
Carola –
Is this also the right one for Sculpfun S30 pro Max?
James –
Hi Carola. Thank you for having a look. That switch will work, you could also use the universal switch: https://www.jafweb.co.uk/index.php/product/2023switch/ Afraid there will be a slight delay if you order. I’m out of the country until the 26th August…
SD –
can i wire this on a sculpfun s9 board ?
James –
Good Morning
This switch is designed to attach to the Y axis stepper and connect to the end of the stepper cable from the board. If you want to attach a switch to the board directly have a look at the Xtool Pro switch I do. The connections on that one will connect to the S9 board. https://www.jafweb.co.uk/index.php/product/xtool-rotary-switch/ Happy to do custom enclosure / cable lengths. Drop me an email at james@jafweb.co.uk 😉
